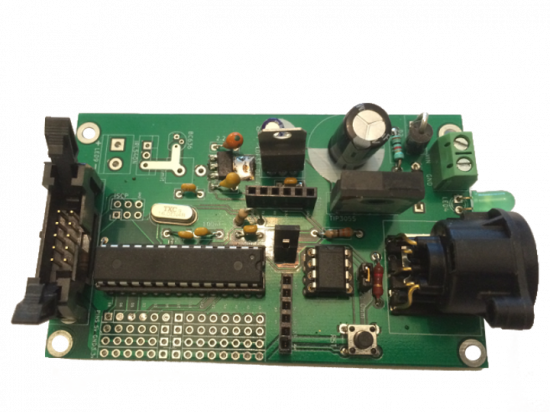

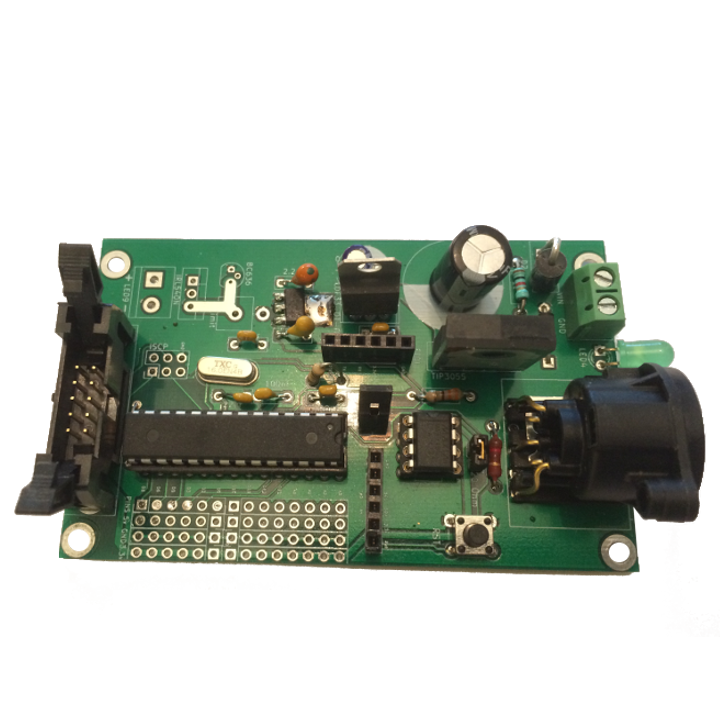

SwissBoardMini
Little, only one DMX connector
- DMX XLR Neutrik in 5 or 3 points version
- optional HF Module
- Vin from 3.7 to 35V, protected against wrong polarity
- One constant Current dimmer (max 6A) for high power led or DC Mottor
- A debug Led i2c Bus for module communication.
- With HF module 4 input/output pwm 12 bits, 6 analog Input/output , 1 digital Input/output.
- Without HF module 6 input/output pwm 12 bits, 6 analog Input/output , 4 digital Input/output.
- Fully programmable by Arduino
| size | 93x57x25 mm |
| weight | 40 g |
